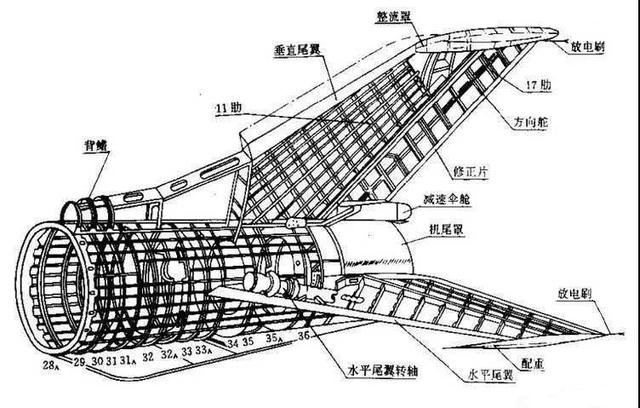

The bending forming process of aviation aluminum profiles has been widely applied in bending workpieces such as aerospace aircraft manufacturing. Bending machines are often used for the bending processing of key components that make up the aircraft frame, such as the edge strips on the aircraft frame ribs, the front and rear sections of the fuselage, and the engine nacelle. Their bending forming accuracy directly affects the aerodynamic shape of the aircraft. However, many parts with variable curvature, such as Z-shaped, L-shaped, T-shaped, U-shaped, or other shaped section bending parts, are generally formed by bending machines.
During the bending process of aerospace shuttle profiles, there are common problems such as wall thickness reduction, cracking, wrinkling, section distortion, and rebound, which require repeated correction through worker experience and trial and error methods. After the final shape is formed, manual calibration is also required. This method is costly, time-consuming, and difficult to ensure shape accuracy.
Performance characteristics of high-precision CNC EVO system
Servo hydraulic system: The hydraulic system has high stability, low hydraulic oil temperature, energy-saving, and emission reduction.
Bending expert system:
- CNC bending capacity calculator, which can display whether the workpiece can be bent or not. Display machine load, expected remaining straight edges and rebound;
- The CNC system can automatically calculate the yield strength of materials, facilitating the selection of appropriate pressure and wheelbase;
- CNC automatically controls the fast approaching and slow positioning of the axle, and has speed buffering function;
- The CNC system can automatically generate multiple curling forming processing data based on materials and requirements;
The CNC system has strong curl rebound correction calculation function.
Exquisite machine structure: The electrical and hydraulic systems are cleverly designed and placed inside the machinery, creating a delicate appearance.
