Description

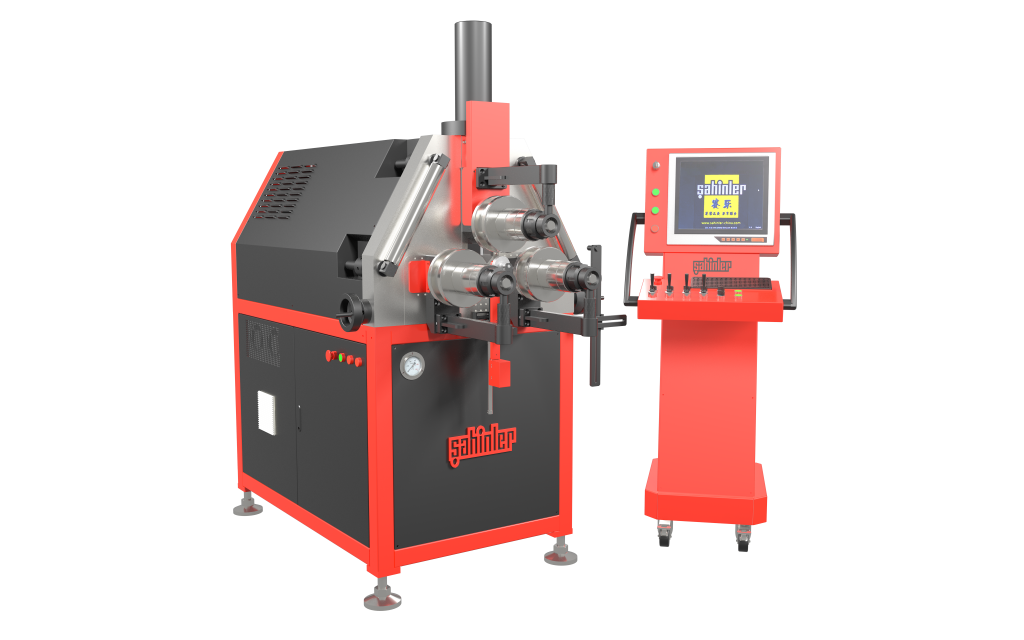

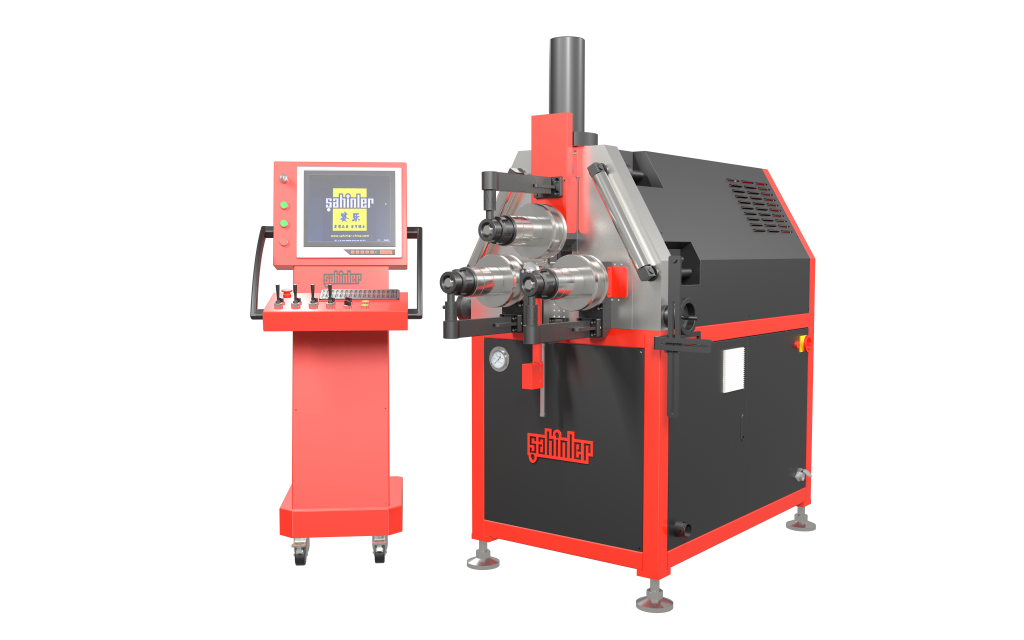

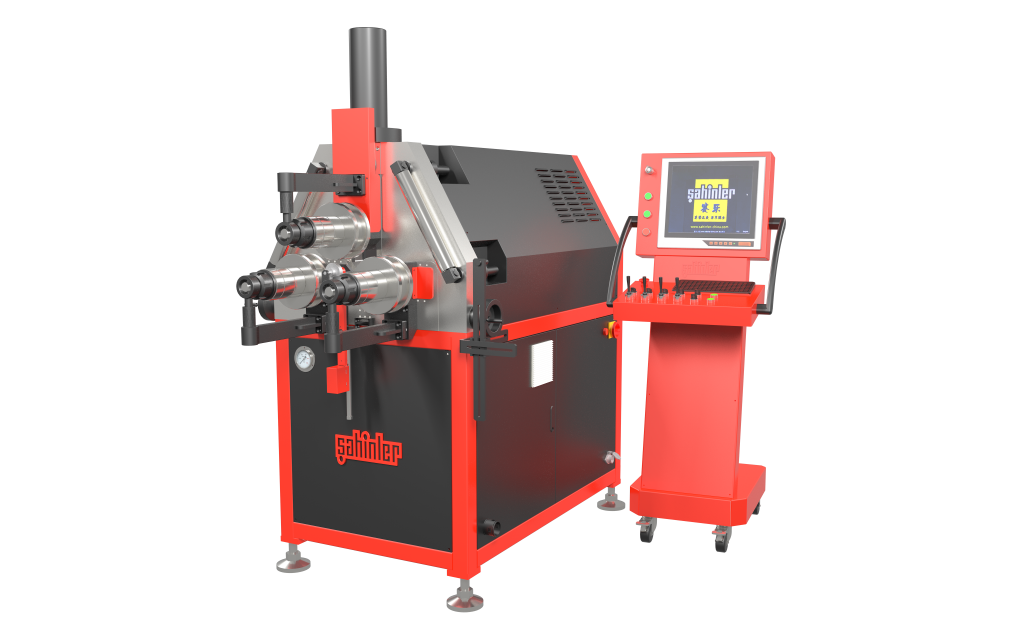

High precision CNC-EVO profile bending machine HPK55-CNC(13T)
| Hydraulic cylinder force | 13T | |
| Machine type | Vertical | |
| Y axis repeatablity | 0.01mm | |
| Y axis stroke | 160mm | |
| Z axis stroke | —— | |
| 3 axis controlled indepently, stepless speed control | 1-20rpm | |
| Axis gap adjustable | 170-420mm | |
| Roll shaft diameter | 55mm | |
| Shaft length | 250mm | |
| Torque | 2527Nm | |
| 3D rotation angle | —— | |
| Hydraulic motorization/hydraulic servo motorization | 3.7kW/- | |
| Main shaft drive motor, clean and low noise | 3kW | |
| Power | Voltage | 3 phase 380V 50Hz |
| Current | 20A | |
| LxWxH | 1656×920×1855mm | |
| Weight | 1000kg | |
1.The CNC-EVO system has the function of measuring the material rebound rate to solve the problem that the material rebound affects the processing dimensional accuracy;
2.CNC-EVO is specially designed and manufactured for complex and high-precision workpieces, multi-step bending, variable curvature bending, ellipse, etc .;
3.Satisfying the bending processing of variable arcs, the flexible processing and production of single arc and multi-radius multi-curvature variable arc multi-section arc workpieces;
4.Directly import CAD drawings to automatically generate programs, support graphical operation software can realize bending and curling one and multiple molding;
5.The hydraulic servo hydraulic system guarantees the repeated control accuracy of 0.01mm of the work roll under the working state of the maximum tonnage pressure;
